Pipe Fittings (Pipe Fittings) minnu bɛ kɛ ni jiri ye

Pipe fittings threaded bɛ kɛ pipe systems kɔnɔ yɔrɔ min na amasinw ka jɛgɛn ni jiriw yeka fisa ni welda ye, kɛrɛnkɛrɛnnenya la, bɔgɔdaga misɛnninw-siraw la, minɛnw ɲɔgɔndanw na, nafamafɛnw bolofaraw la, jibɔyɔrɔw ni fiɲɛbɔyɔrɔw la, ani ladonni-terikɛ jɛkuluw la. Ka ɲɛsin nɛgɛmafɛnw ma minnu dilannen don, u ka ɲɛfɔli basigilen yeASME B16.11 ye, ni jiribolo dakunw bɛ sɔrɔ sanNPT, BSPT, walima BSPP, a ka c’a la, a bɛ datugu1/8" ka se 4" ma.ani degun kalanw i n’a fɔKalanso 2000, 3000 ani 6000.

Fitini min bɛ ni jiri ye, o man kan ka san abada a cogoya dɔrɔn fɛ. Fɛn saba minnu bɛ sɔnni ɲɛminɛ, olu yejiri suguya, degun kalanso, animatériel grade (materiel grade) ye.

Fila suguyaka kan ka bɛn poroze jatebɔ ni sɔrɔ sugu ma :

• NPT yebɛ kɛ ka caya Ameriki Woroduguyanfan petoroli, gazi ani izini caman na.
• BSPT (BSPT) yeye jirisunba ye fana, wa a bɛ kɛ ka caya jagokɛyɔrɔ caman na.
• BSPP (BSPP) yeye jiri ye min bɛ taa ɲɔgɔn fɛ ani a ka c’a la, a bɛ kɛ ni sigilan kolanfɛn ye, gazi, walima O-ring labɛnni sanni jiriw ka ɲɔgɔnkanu dɔrɔn ka kɛ.

Degun kalansoka kan ka bɛn layini dilanni cogoyaw ma:

• Kalanso 2000. Kalanso
• Kalanso 3000. Kalanso 3000
• Kalanso 6000. Kalanso 6000

Fɛn minnu bɛ sugandia ka c’a la, u bɛ sugandi ka kɛɲɛ ni baarakɛcogo ye:

• ASTM A105 yeka ɲɛsin baara caman ma min bɛ kɛ ni carbone steel ye
• ASTM A350 LF2 yeka ɲɛsin baarakɛminɛnw ma minnu bɛ funteni dɔgɔya-
• ASTM A182 F304 / F316 ye baara kɛ ni a yeka ɲɛsin sɛnɛfɛnw ma minnu bɛ se ka sɔgɔsɔgɔ-baara kɛ
• ASTM A182 F11 / F22 / F91. Bamako, Malika ɲɛsin -funteni kɔrɔlenw ma

Sannikɛlaw kama minnu bɛ ɲinini kɛpipe fittings threaded hakɛw jatebɔsɛbɛn, ɲɛ kɔnɔkow nafa ka bon kosɛbɛ, o tɛ katalogu-cogo tabali ye min bɛ ni nimɔrɔ kopilenw ye. Fɛɛrɛ min bɛ se ka kɛ, o ye k’a jira ko...sugandili hakɛani k’a ɲɛfɔ ko santiri-ka se-ban tigitigi ni jiri jateminɛ bɛ dafaASME B16.11 yeani jirisunw sariyakolo kofɔlen.

Walasa ka hakɛ tigitigiw sɔrɔ, quotation walima ja seginnkanni ka kan ka a sinsin:

• fitinin suguya
• tɔgɔla hakɛ
• degun kalanso
• dilancogo sariya
• matériel grade (materiel grade) ye

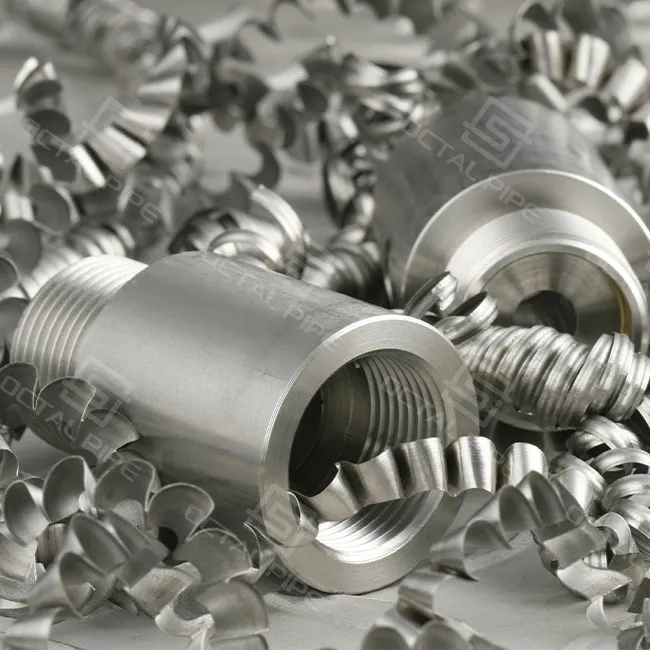

A pipe coupling ni jiri yeye fitini forolenw dɔ ye min yamaruyara kosɛbɛ -bore pipe misɛnninw na. A bɛ kɛ ka pibiliki dakun fila siri ɲɔgɔn na ni jiri ye, wa a bɛ ye tuma caman na baarakɛminɛnw na, minɛnw bolow, skid pakew, ani ladonni caman cili baara la.

Sanni siratigɛ la, sɛgɛsɛgɛli jɔnjɔn minnu bɛ kɛ ka ɲɛsin pibiliki sɔgɔlen ma, olu ye :

• dilancogo sariya: NPT, BSPT, walima BSPP
• degun kalanso: 3000 walima 6000 bɛ sɔrɔ bore fitinin-bore baara la
• matériel grade (materiel grade) ye: A105, LF2, F304, F316, wdfl.
• masinw ka jogo ɲuman: dilancogo saniya ani ka jateminɛ kɛcogo ɲuman sɔrɔ
• tugu-tugu-ɲɔgɔn kɔ: taamasiyɛn ni MTR min bɛ tali kɛ funteni nimɔrɔ la

Pipe coupling min bɛ ni jiri ye, o mankan ka nɔgɔn, nka ni jiri suguya ma ɲɛ, o yɔrɔ bɛ kɛ baara ye min tɛ se ka kɛ yɔrɔ la. O de kama, jɛɲɔgɔnya yamaruyaw ka kan ka sɛbɛn tuma bɛɛ PO cogo dafalen na, i n’a fɔ:

Misaliya:

ASME B16.11, couplage complet à fil, 1 in, NPT, Classe 3000, ASTM A105, Quty ___

1/2 inch fitiniw pipe fittingsye hakɛw dɔ ye minnu bɛ sigi senkan tuma caman na -bɔri misɛnninw na bawo u sigilen bɛ yɔrɔ la tigitigi, sigili nɔgɔya nafa ka bon yɔrɔ min na, nka sigili dɛsɛ min bɛ sɔrɔ jiriw kɔlɔsili jugu fɛ, o ka ca hali bi. Porozɛ lakikaw la, o hakɛ in bɛ kɛ kosɛbɛ minɛnw sirili-up layiniw na, tansiyɔn jateminɛnanw, jirisunw sɔgɔlanw, jibɔyɔrɔw ni fiɲɛbɔyɔrɔw, misali talanw, sigilanw jibɔlanw, kemikɛli dozi bolofaraw, ani compact skid utility ɲɔgɔndanw.

Sannifeere jɛkuluw fɛ, nin tɛ fɛn "fitini ni nɔgɔman" ye. A ka c’a la, a ye hakɛ nɔgɔyalenw dɔ ye ka dɔgɔya ani ka foro gɛlɛyaw lase teliya la ni jiri suguya, masina walima kalasi sugandili ma ɲɛ. A 1/2 inch fitting bɛ se ka kɛ i n’a fɔ a bɛ sɔn ka kɛ ɲɛ na, nka ni...jiri juguya, taper, pitch, crest finish, walima dondaw chamfertɛ kɔrɔsi ka ɲɛ, sigili gɛlɛyaw bɛ jira o yɔrɔnin bɛɛ.

Min bɛ deli ka kɛ1/2 inch fitiniw pipe fittingska fara kan:

• couplage (ɲɔgɔndɛmɛ).- jɛɲɔgɔnya tilennen bɛ pibiliki dakun fila ni ɲɔgɔn cɛ
• nɔnkɔnkuru- sira caman cili pibilikiw bolicogo compact kɔnɔ

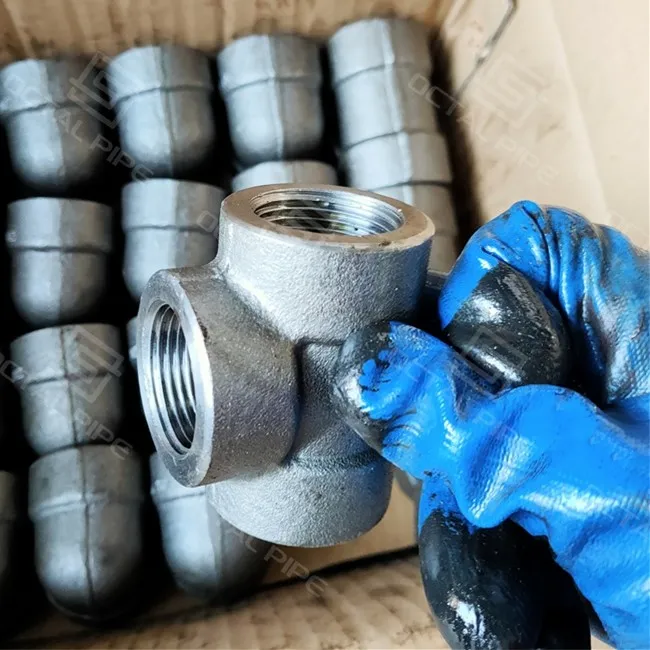

• tee- bolofara bɔyɔrɔ min bɛ kɛ ka jateminɛw, valvew, ani utility take-offs
• union (tɔnsigi) ye- jɛgɛn min bɛ se ka bɔ ka ɲɛsin ladonni-terikɛ lajɛw ma
• kurantayɔrɔ- ka dakunw datugu minnu ma baara kɛ
• cap- laban dadonni kɛnɛma jɛgɛnsiraw kama
• sinji la- jɛgɛnsira surun min bɛ kɛ ni jiri ye fitiniw walima bɔlɔnw cɛ
• fɛnɲɛnamafagalan (threadolet) ye- bolofara bɔyɔrɔ ka bɔ kunkolo belebeleba dɔ la ka don layini fitinin-bore threaded la

1 inch jiri pipe fittingsbɛ kɛ ka caya baarakɛcogo sira misɛnninw na, kemikɛli skidw, fiɲɛbɔlanw, ji saniyalanw, ani bolofara ɲɔgɔndan minnu bɛ se ka bɔ, ladonni sɔrɔli nafa ka bon yɔrɔ minnu na. O hakɛ in ka teli ka kɛ yɔrɔ ye sannikɛlaw bɛ daminɛ ka ɲɔgɔn sanga ni suguya fitinin dɔrɔn tɛ, nka fanaKalasi 3000 ni Kalasi 6000, nɛgɛ karɔbɔni ni nɛgɛ min tɛ sɔgɔ, ani NPT ni BSPT/BSPP, bawo fitinin in bɛ nɔ tilennen bila sisan sigicogo dannaya la, bolofara sabatili la, ani baarakɛcogo kuntaalajan-kan na.

Ka bɔ sannifeere siratigɛ la, .1 inch jiri pipe fittingsman kan ka komandi kɛ i n’a fɔ stock item ɲɛfɔli nɔgɔman. PO barikama ka kan ka ɲɛfɔli kɛASME B16.11, fitting type, 1 inch size, thread standard, pressure class, material grade, ani sɛgɛsɛgɛli/sɛbɛnw wajibiyalenw. Tiɲɛ na, gɛlɛya minnu ka teli ka sɔrɔ nin hakɛ in na, olu yejiriw bɛnbaliya, u sirili joona ɲɔgɔn lajɛtuma na, ani tuguni kɔlɔsili barikama, o de y' a to sannikɛlaw ka teli k' u janto kosɛbɛjiri jatebɔlan sɛgɛsɛgɛli, taamasiyɛn, ani MTR ɲɔgɔndansani a ka ci.

A ka c’a la, fɛn minnu bɛ kɛ ni jiri ye walasa ka degun baara kɛ, olu bɛ dilan ka bɔblanks forgés (yɔrɔ jɛlenw)., o kɔfɛ, masinw ni funteni furakɛli bɛ kɛ ka kɛɲɛ ni fɛnw hakɛ ye. O kɛcogo in nafa ka bon bawo fitinin laban kɛcogo bɛ bɔ fɛn caman na ka tɛmɛ a bonya tɔgɔlama kan. A bɛ bɔ ninnu na:

• dilan dafalen
• ‘kɔnɔnafili
• kamankunw janya
• bore tɛmɛsira
• degun dancɛ min bɛ kɛ tuma bɛɛ

Walasa ka sɛgɛsɛgɛli kɛ, nafa caman -fitting orders threaded ka kan ka kɛ ninnu ye:

• jiri jateminɛnan sɛgɛsɛgɛlika ɲɛsin NPT/BSP ma
• dimensions (dimensionnels) sɛgɛsɛgɛliwfɛnw kan minnu nafa ka bon kosɛbɛ
• taamasiyɛnw sɛgɛsɛgɛlika ɲɛsin bonya, kalasi, kalasi ani funteni hakɛ ma
• MTR / mansin sɛgɛsɛgɛli rapɔɔri tuguni
• MT / PT yeni a ɲinina a fɛ
• sɛgɛsɛgɛli jilama walima fiɲɛ fɛni a ɲɛfɔra PO fɛ walima poroze spec fɛ

Pipe fitting threaded ye fitting forged walima machined fitting ye ni pipe threads kɔnɔna walima kɛnɛma ye minnu bɛ kɛ ka pipe, valves, instruments walima branche bɔyɔrɔw siri ɲɔgɔn na k’a sɔrɔ u ma welding kɛ. Nɛgɛ dilannenw na, a ka c’a la, fɛn minnu bɛ kɛ ni jiri ye, olu bɛ dilan ka...ASME B16.11 yeani u bɛ dilan ɲɔgɔndan suguyaw la i n’a fɔNPT, BSPT, ani BSPP.

A ka c’a la, baara bɛ kɛ n’u ye ni poroze mago bɛ:

• lajɛ teliya la
• fɛn caman cili ka nɔgɔn
• baara minnu ka funteni ka dɔgɔn yɔrɔ la
• compact fitinin-bore sigili
• ladonni-terikɛ pibilikiw labɛncogo

Porozɛ yɛrɛyɛrɛw la, fitiniw ni jiriw bɛ sɔrɔ kosɛbɛminɛnw layiniw, bolofara ɲɔgɔndan minnu ka dɔgɔ-, nafamafɛnw, jibolisiraw, fiɲɛbɔyɔrɔw, ani skid-montés assembliesyɔrɔ min na teliya la ɲɔgɔn lajɛli ni a bɔli nafa ka bon.

Nafa min bɛ fitiniw na minnu bɛ ni jiri ye, o ye o yesigili nɔ bɛ bɔ kosɛbɛ jiri suguya ɲuman na, a lajɛcogo ɲuman na, ani sigicogo ɲuman na. Ni jiribolo sariya jugu yamaruyara, jɛgɛn bɛ se ka kɛ i n’a fɔ a bɛnnen don ka kɛɲɛ ni a bonya ye nka a bɛ dɛsɛ hali bi fit-up waati walima ka bɔgɔbɔgɔ baara kɛtuma na.

Farati minnu bɛ sɔrɔ a la, olu ye:

• NPT ni BSP tɛ bɛn ɲɔgɔn ma
• jiri tiɲɛnenw jiginni walima u sigili waati
• degun kalasi sugandili jugu
• sigicogo bɛrɛbɛrɛ tɛ kɛ jirisunw na minnu bɛ tali kɛ ɲɔgɔn na
• ka tɛmɛ-gɛlɛya kan min bɛ jiri tiɲɛ
• QA sɛbɛnw barikama minnu bɛ sɔn sɔrɔli bila kɔfɛ

O kɔrɔ tɛ ko fɛn minnu bɛ kɛ ni jiri ye, olu tɛ se ka da u kan. O kɔrɔ ye k’u b’a ɲinikololi min ka fisa ni fɛn ɲɛfɔcogo yeka tɛmɛ sannikɛla caman b’a miiri cogo min na.

A tɛ tigitigi. Industriw ka ɲinini kɛcogo la, .pipe basigilen min bɛ ni jiri yeye daɲɛ ye min ka bon kosɛbɛ ani min tɛ tigitigi ye. A bɛ se ka kɛ ko a bɛ tali kɛ ajiginni basigilen, dɛmɛyɔrɔ, duguma flansɛ-cogo minɛnw, lanpan/baralan minɛnw, walima fɛn dɔ min bɛ ni jiribolo ye, k' a sɔrɔ afitting min bɛ kɛ ni jiri yepibilikiw sanni na a ka c’a la, o kɔrɔ ye degun-fɛn ye min dilannen don ka kɛɲɛ ni pibiliki sariya ɲɛfɔlen ye i n’a fɔASME B16.11 ye. O kɔrɔ ye ko pibiliki basigilen min bɛ ni jiri ye, o bɛ se ka kɛ masin dɛmɛnan ye walima fɛn min bɛ kɛ ni fɛnɲɛnamafagalan ye, nka pibiliki fitini min bɛ ni jiri ye, o ye a yɔrɔ dɔ yedegun dancɛani ka kan ka sugandi ni fɛɛrɛko kɔlɔsili gɛlɛnba ye.

O danfara in nafa ka bon sannifeere la bawo sanniko hakilina tɛ kelen ye pewu. Tiɲɛ donpipe fitting ni jiri yeka kan ka yamaruya nifitting type, nominal size, thread standard (NPT / BSPT / BSPP), degun kalasi (2000 / 3000 / 6000), fɛnw hakɛ, ani sɛgɛsɛgɛli / sɛbɛnw wajibiyalenw. Ɲini kumasen min tɛ jɛya i n’a fɔpipe basigilen min bɛ ni jiri yetɛ a fɔ feerekɛla ye ni fɛn in ye aɲɔgɔndan, kɔkili, tee, union, plug, cap, walima threadole, wa a tɛ foyi fɔ kalasi, sigicogo, walima tugu-tugu-ɲɔgɔn kɔ. Tiɲɛ na, o daɲɛ sugu min tɛ jɛya, o ye fɛɛrɛ teliyalen dɔ ye min bɛ se ka kɛ sababu ye ka quotation filiw, thread bɛnbaliya, walima ka sɔrɔ latɛmɛ.

Ni pibiliki sitɛmuw ye, o fɛn ka kan ka bɛn ni...baarakɛcogo tansiyɔn, sigicogo, ani sigicogo sariya, a tɛ kɛ yecogo dɔrɔn ye. Dɛmɛn-cogo "basi" bɛ se ka mago don dɔrɔn dimensional fit ani basic material identification la, k'a sɔrɔ threaded fitting fana ka kan ka wasajiriw tiɲɛni, kalasi jate, masinw ka ɲumanya, taamasiyɛnw, ani MTR nɔfɛtaama. Ni porozɛ wajibiyalen yɛrɛ ye izini pibiliki ye, ka baara kɛ ni "threaded pipe base" ye bawo RFQ daɲɛ bɛ lafiya kojugu ; sira min ka fisa ni tɔw ye, o ye ka yɔrɔ in sɛbɛn i n’a fɔ a bɛnnen donfitting min bɛ kɛ ni jiri yecogojirali.

RFQ layini barikama ka kan ka kunnafoni caman sɔrɔ walasa ka jiri walima kalasi bɛnbaliya bali. A kɛcogo min bɛ se ka kɛ, o ye:

ASME B16.11 + fitting type/pattern + size + thread standard + pressure class + material grade + sɛgɛsɛgɛli/sɛbɛn wajibiyalen + hakɛ

Misali 1. Ɲɛjirali 1
ASME B16.11, 90℃threaded elbow, 1/2 in, NPT, Classe 3000, ASTM A105, MTR wajibiyalen don, Hakɛ ___

Misali 2nan
ASME B16.11, couplage complet à thread, 1 in, BSPT, Classe 6000, ASTM A182 F316, MT + MTR wajibiyalen don, Hakɛ ___

Misali 3nan
ASME B16.11, tee equal threaded, 3/4 in, NPT, Classe 3000, ASTM A350 LF2 CL1, baarakɛyɔrɔ min bɛ funteni dɔgɔya-, Quty ___

Porozɛ yamaruyaw kama, ka bɛnkan tigitigi ni sɛgɛsɛgɛli hakɛ fara a kan, o bɛ dɛmɛ ka dɔ bɔ quotation seginnkanni na, ka sɔsɔliw sɔrɔ, ani ka sigili bila kɔfɛ.

Aw ye ɲɔgɔn sɔrɔ sisan

Ɲininkaliw



01.Pipe fittings threaded ka kan ka ɲɛfɔ cogo di sanni yamaruya kɔnɔ walasa u kana bɛn ɲɔgɔn ma?

PO dafalen ka kan ka fɔASME B16.11 ye, fitinin suguya , .kundama, jiribolo sariya (NPT / BSPT / BSPP) ., degun kalasi (2000 / 3000 / 6000) ., matériel grade (materiel grade) ye, hakɛ, ani sɛgɛsɛgɛli walima sɛbɛnw minnu wajibiyalen don. O ye fɛɛrɛ teliyalen ye walasa ka i yɛrɛ tanga jiriw bɛnbaliya ni QA ban ma.

02.Mun ka kan ka lajɛ pipe fittings dimensions chart threaded kɔnɔ sani aw ka komandi kɛ?

Sannikɛlaw ka kan k’a sɛmɛntiyatɔgɔla hakɛ, degun suguya, jiri suguya, ani fitinin suguyafɔlɔ. O kɔfɛ, santiri-ka se-dakun hakɛ tigitigiw ni jirisunw kunnafoni ka kan ka sɛgɛsɛgɛ ka kɛɲɛ ni sariya yeASME B16.11 tabali, bawo hakɛw bɛ danfara ka kɛɲɛ ni suguya, bonya ani kalasi ye.

03.Danfaraba jumɛn bɛ NPT, BSPT, ani BSPP jirisunw pipe fittings cɛ?

NPT yeaniBSPT (BSPT) yeye jiriw ye minnu bɛ sɔgɔsɔgɔ, k’a sɔrɔBSPP (BSPP) yeye jiribolo ye min bɛ tali kɛ ɲɔgɔn na. O kɔrɔ ye ko sigicogo tɛ kelen ye, wa o jiri sariyaw tɛ kelen yea tɛ se ka ɲɔgɔn falen-falensannifeere la. Fitting min bonya bɛnnen don nka a dilancogo jugu bɛ se ka dɛsɛ hali bi a sigili waati.

04.Mun ka kan ka lajɛ ni aw bɛ pipe coupling threaded san, kɛrɛnkɛrɛnnenya la 1/2 inch ani 1 inch hakɛw la?

Ka da a kan apipe coupling ni jiri ye, kɛrɛnkɛrɛnlenyala1/2 inch fitiniw pipe fittingsani1 inch jiri pipe fittings, sɛgɛsɛgɛli kunbabaw yejiri jateminɛnan sɔnni, degun kalasi, fɛn dilannen hakɛ, masin kɛcogo ɲuman, ani tugucogo. Nin bɔgɔdaga fitinin-bore hakɛ minnu bɛ kɛ tuma caman na, jiriw tiɲɛni bɛ nɔ bila dasirili ni u lajɛ teliya la k’a ɲɛsin u yɛrɛ ma.

05.Sɛgɛsɛgɛli sɛbɛn jumɛnw nafa ka bon kosɛbɛ pibiliki sirilenw na sani u ka ci?

Sɛgɛsɛgɛli minnu nafa ka bon kosɛbɛ sani-cikan ka se, olu yego/no-taga jiri jatebɔlan sɛgɛsɛgɛli, dimensions inspection, taamasiyɛnw dafalen, aniMTR / funteni jate minɛcogo. Walasa ka baara kɛ min farati ka bon-, sannikɛlaw fana bɛ se ka a ɲiniMT/PT yewalimajilafɛnw / fiɲɛ sɛgɛsɛgɛliwalasa ka dɔ bɔ sɔrɔ sɔsɔliw la ani sigili latɛmɛni na.
